Heating water accounts for nearly 20% of the average home’s energy usage. If you live in a sunny climate or have high household hot water demands, transitioning to solar water heating systems offers a practical way to bypass volatile utility rates.
This guide covers everything you need to know about residential solar thermal technology. We explain how these systems capture the sun’s energy, compare active and passive plumbing designs, and evaluate real-world costs and payback periods. We also compare solar thermal setups against modern heat pump water heaters and solar photovoltaic (PV) options so you can make a data-driven decision for your home.
A solar water heating system is a specialized plumbing configuration that uses roof-mounted thermal collectors to absorb sunlight, convert it into heat, and transfer that heat to your household water supply, drastically reducing the need for grid electricity or natural gas.
Key Takeaways
- Significant Energy Reductions: Solar water heaters can cut your water heating bills by 50% to 80%, depending on your local climate and household water consumption.
- Active vs. Passive Systems: Active systems use pumps to circulate water or antifreeze and are best for cold climates. Passive systems rely on gravity and natural convection, making them cheaper but better suited for mild, freeze-free regions.
- Collector Technologies: Flat-plate collectors are the standard for most residential needs, while evacuated tube collectors offer superior performance in freezing temperatures and overcast conditions.
- Cost and Incentives: Upfront costs typically range from $5,000 to $10,000, but federal tax credits (like the 30% Residential Clean Energy Credit in the U.S.) and local rebates can significantly reduce the final price tag.
- Modern Alternatives: Before purchasing, homeowners should weigh solar thermal against the combination of a heat pump water heater paired with a standard solar PV array, which has become highly cost-effective.

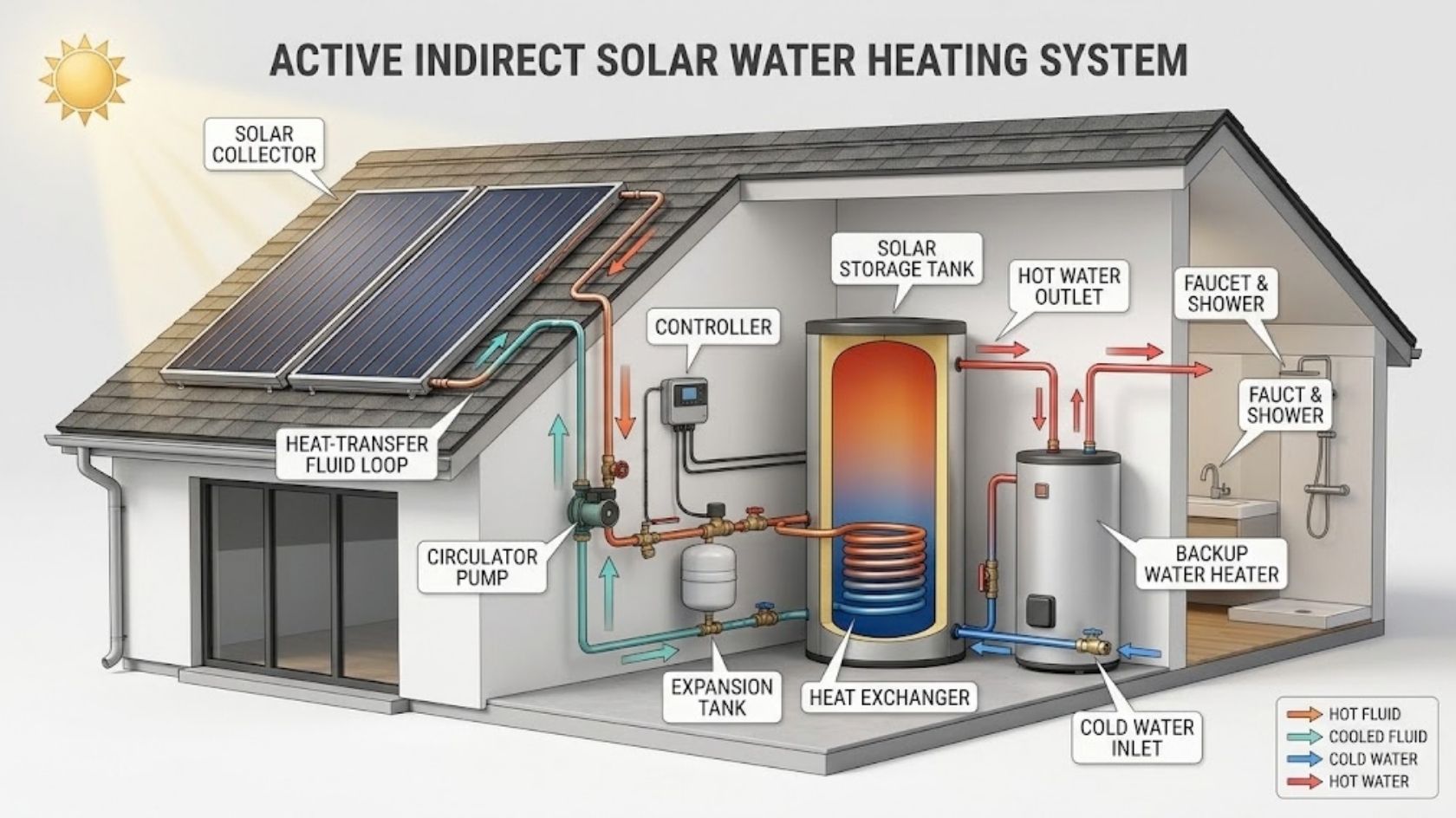

What Are Solar Water Heating Systems and How Do They Work?
A solar water heating system is a renewable energy technology that uses roof-mounted thermal collectors to absorb sunlight and heat water. The heated water or heat-transfer fluid is then circulated into an insulated storage tank, providing domestic hot water while significantly reducing reliance on conventional electricity or gas.
While exact operations vary by system type, the core process involves three distinct steps. First, the solar collector absorbs solar radiation and converts it into heat. Second, a transfer mechanism—either a circulation pump or natural thermal convection—moves this heat from the roof down to a storage tank. Third, a heat exchanger transfers the thermal energy into your domestic water supply.
Because the sun does not shine at night or during heavy storms, all solar water heating systems integrate a conventional backup heater (electric or gas) to ensure you never run out of hot water.

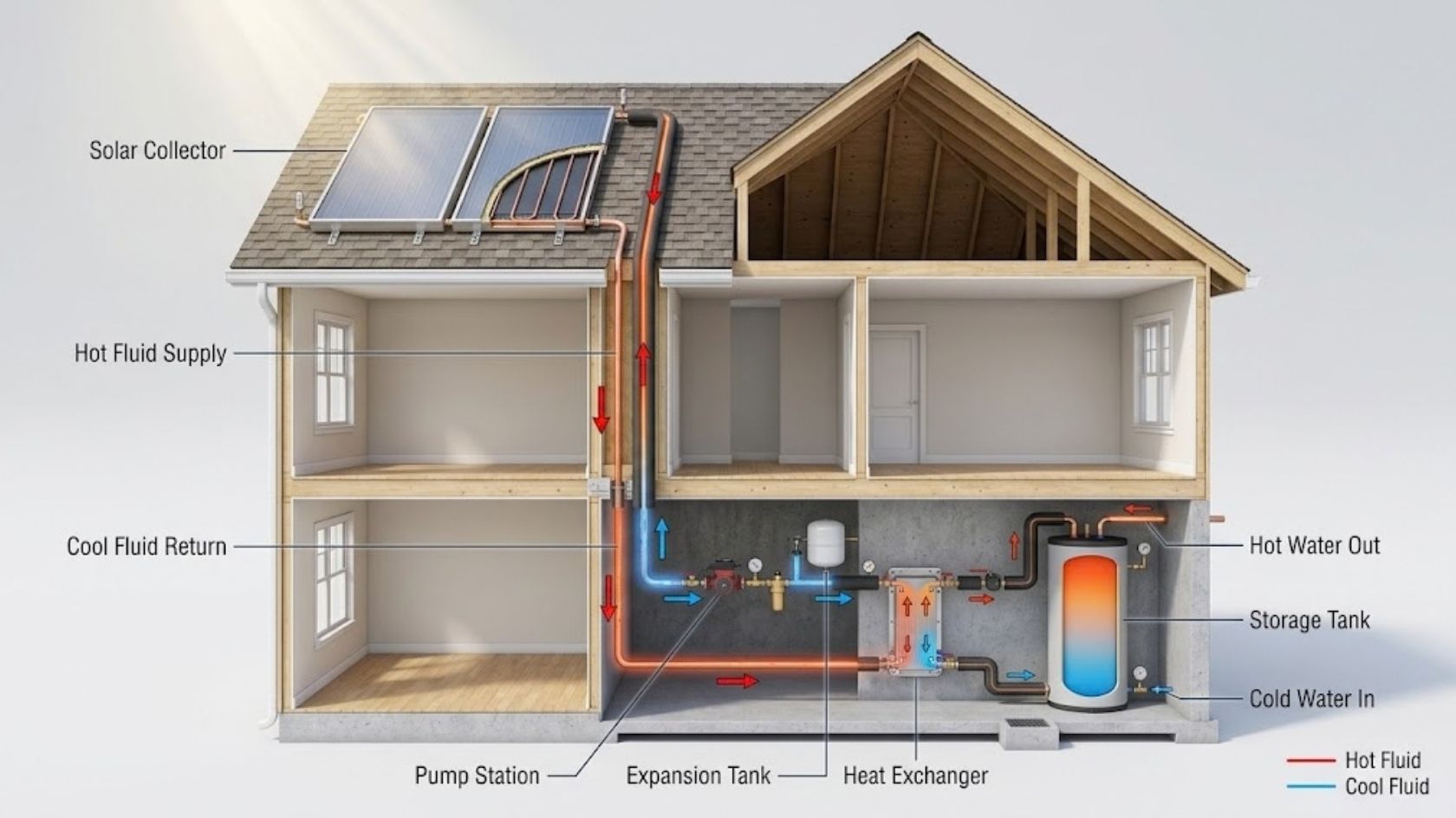

Main Components of a Solar Water Heater
To understand system design, you must understand the individual hardware components.
Solar Collectors
The collector is the engine of the system, mounted on a roof or ground rack facing the sun. Its sole job is to trap solar radiation and transfer it to a fluid (either potable water or antifreeze). The interior of a collector is typically coated with a dark, selective surface that maximizes heat absorption while minimizing heat loss.
Solar Storage Tanks
Solar thermal systems require highly insulated storage tanks. These are often larger than standard water heaters because they must store enough hot water to carry the household through the night and cloudy periods. Many tanks feature two ports: one connecting to the solar collector loop and another connecting to the home’s plumbing.
Heat Exchangers
In systems that use antifreeze to prevent frozen pipes, a heat exchanger is required. This component transfers heat from the solar fluid to your domestic water without mixing the two liquids. Depending on local building codes, installers may use single-wall or double-wall heat exchangers. Double-wall exchangers are often mandated when toxic heat-transfer fluids are used, providing an extra layer of protection against domestic water contamination.
Circulation Pumps and Controllers
Active systems require electrical circulation pumps to move fluid between the roof and the tank. The controller is the brain of the operation. It uses temperature sensors located at the collector and the tank. When the controller detects that the fluid on the roof is significantly hotter than the water in the tank, it turns on the pump. When the tank reaches its maximum temperature, or when the roof temperature drops below the tank temperature, the controller shuts the pump off to prevent the system from cooling the water.
Essential Metrics: Solar Fraction and SEF
When evaluating components, pay attention to the Solar Fraction and the Solar Energy Factor (SEF).
- Solar Fraction: The percentage of your total annual hot water load provided by solar energy. A solar fraction of 0.75 means the sun provides 75% of your hot water, and your backup heater supplies the remaining 25%.
- Solar Energy Factor (SEF): The energy efficiency metric for the system. It measures the energy delivered to the water divided by the electrical or gas energy consumed by the system’s pumps and backup heater. A higher SEF indicates a more efficient system.
Types of Solar Water Heating Systems
Solar water heaters are broadly categorized into active and passive systems, which are further divided based on how the fluid is circulated.
Active Solar Water Heating Systems
Active systems use electrical pumps, valves, and controllers to circulate fluid. They are highly efficient and provide precise control over water temperatures.
Direct Circulation Systems:
Pumps circulate household water directly through the solar collectors and into the home. They work well in climates where it rarely freezes. However, if a sudden, unexpected freeze occurs, the water inside the roof collectors can freeze, expanding and bursting the copper pipes.
Indirect (Closed-Loop) Circulation Systems:
Pumps circulate a non-freezing, heat-transfer fluid (usually a propylene glycol-water mixture) through the collectors and a heat exchanger. This heats the water that then flows into the home. Indirect systems are popular in cold climates because they are highly resistant to freezing temperatures. They require more maintenance due to the necessary degradation checks on the antifreeze fluid.
Passive Solar Water Heating Systems
Passive systems do not use pumps or electronic controllers. Instead, they rely on gravity and the natural tendency of hot water to rise (thermosiphon effect). They are generally less expensive and more reliable than active systems, but they are also less efficient and have strict climate and structural limitations.
Integral Collector-Storage (ICS) Systems:
Also known as batch heaters, these consist of large, black tanks or tubes housed inside an insulated, glazed box. Cold water flows into the solar collector, is heated by the sun, and then flows directly to the home’s backup water heater. They are strictly for mild climates, as the outdoor pipes and the collector itself will freeze and burst in harsh winters.
Thermosiphon Systems:
In this design, the water tank must be installed above the solar collectors (often on the roof itself). As the sun heats the water in the collectors, the hot water naturally rises into the storage tank, drawing cooler water from the bottom of the tank back down into the collectors. Because they carry the heavy weight of a water tank on the roof, your home’s structural integrity must be verified by a contractor before installation.
Comparing Solar Collector Types
The type of collector you choose dictates your system’s efficiency, footprint, and performance in adverse weather.
Flat-Plate Collectors
These are the most common type of residential solar thermal collectors. A flat-plate collector features a dark absorber plate (usually copper or aluminum) housed inside an insulated metal box with a glass or polymer cover. As sunlight passes through the cover, it strikes the absorber plate, which transfers the heat to fluid running through copper tubes attached to the plate. They are durable, cost-effective, and provide excellent performance in warm to moderate climates.
Evacuated Tube Collectors
Evacuated tube systems feature a series of parallel, transparent glass tubes. Each tube contains an inner glass tube covered with a selective coating to absorb solar energy. The air between the inner and outer tubes is removed to create a vacuum. Because a vacuum is an excellent insulator, evacuated tubes experience almost zero heat loss to the surrounding air. This makes them highly efficient in freezing climates and overcast conditions, capable of achieving much higher temperatures than flat-plate collectors. They are, however, more expensive and the glass tubes are more fragile.
Unglazed Collectors
Unglazed collectors are simple, inexpensive systems without a glass covering. They are typically made of heavy-duty black plastic or rubber and are used almost exclusively for heating outdoor swimming pools. Because they lack insulation, they lose heat rapidly to cold air and are not suitable for domestic indoor hot water.
Solar Thermal vs. Heat Pump Water Heaters vs. Solar PV
Historically, solar thermal was the only viable way to use the sun for water heating. Today, homeowners face a more complex choice due to the rise of highly efficient Heat Pump Water Heaters (HPWHs) and drastic price drops in Solar Photovoltaic (PV) panels.
| Feature | Solar Thermal Water Heating | Heat Pump Water Heater (Grid-tied) | HPWH + Solar PV Panels |
|---|---|---|---|
| Primary Energy Source | Sun (Thermal energy) | Grid electricity (extracts ambient heat) | Sun (Electrical energy) |
| Space Efficiency | Very high (requires small roof space) | N/A (Indoor unit only) | Moderate (requires large roof space for panels) |
| Maintenance | Moderate (fluid checks, pumps) | Low (similar to standard heaters, filter cleaning) | Low (inverters, standard HPWH maintenance) |
| Cold Climate Performance | Excellent with evacuated tubes | Requires warm ambient indoor air to operate efficiently | Excellent (PV works well in cold, HPWH runs on electricity) |
| System Complexity | High (plumbing on roof, fluid loops) | Low (standard indoor plumbing) | Moderate (electrical wiring on roof) |
When to choose Solar Thermal: You have limited roof space, high hot water demand, live off-grid, or local utility net-metering laws are unfavorable for solar PV. Solar thermal converts up to 70% of solar radiation into heat, making it vastly more space-efficient than PV panels.
When to choose HPWH + Solar PV: You have ample roof space and plan to power your entire home with solar electricity. Running a heat pump water heater off a home solar PV system is currently the most popular modern approach, as it eliminates roof plumbing and reduces maintenance.
Benefits and Limitations
The Benefits
- Utility Savings: Solar thermal systems are immune to gas and electricity rate hikes. Once the system pays for itself, your hot water is practically free.
- Carbon Reduction: A standard residential system can reduce household carbon dioxide emissions by 1 to 2 tons annually.
- High Efficiency per Square Foot: For small roofs, thermal collectors extract far more usable energy per square foot than standard solar panels.
The Limitations
- Upfront Costs: Purchasing and installing a system requires a significant initial capital investment.
- Maintenance Requirements: Unlike passive solar PV, active solar thermal involves moving parts (pumps), plumbing on the roof, and degrading fluids (glycol) that must be flushed and replaced every 3 to 5 years.
- Standby Losses: Even with excellent insulation, stored hot water loses heat overnight.
Costs, Savings, and Payback Period
Understanding the financial mechanics of a solar water heating system requires looking at the total installed cost versus annual operational savings.
Typical Upfront Cost:
The national average cost to install a residential solar water heating system ranges from $5,000 to $10,000 before incentives. Passive systems typically land on the lower end ($3,000 to $6,000), while complex active indirect systems with evacuated tubes command the higher end.
Annual Savings:
Savings depend heavily on the fuel you are replacing. Replacing an electric resistance water heater yields the highest financial return, saving an average of $300 to $600 per year. Replacing a natural gas water heater yields lower financial returns (usually $150 to $300 per year) because natural gas is generally cheaper than electricity per unit of energy.
| System Replaced | Estimated System Cost (Pre-Tax Credit) | Estimated Annual Savings | Typical Payback Period |
|---|---|---|---|
| Electric Resistance | $7,500 | $500 | 7 – 12 Years |
| Natural Gas | $7,500 | $250 | 14 – 20 Years |
| Propane / Fuel Oil | $7,500 | $450 | 8 – 14 Years |
Assumptions: Standard 2-collector active system, four-person household, national average utility rates. Payback calculation includes application of a 30% federal tax credit.
Incentives and Financing
To offset the high upfront costs, numerous financial incentives exist. However, policy availability changes frequently.
- Federal Tax Credits: In the United States, the Residential Clean Energy Credit allows homeowners to claim a 30% tax credit on the total cost of their solar water heating system. This credit was extended under the Inflation Reduction Act and will remain at 30% through 2032. To qualify, at least half of the energy generated by the “qualifying property” must come from the sun, and the system must be certified by the SRCC. Always consult a tax professional and the IRS website for your specific tax liability limits.
- State and Local Rebates: Many states offer additional rebates or performance-based incentives. Check the Database of State Incentives for Renewables & Efficiency (DSIRE) for programs in your ZIP code.
- Financing Options: Property Assessed Clean Energy (PACE) financing or specialized green energy loans from credit unions allow you to pay for the system over time, often using the monthly utility savings to cover the loan payment.
Sizing and Site Requirements
A solar water heater will only perform well if correctly sized and properly sited on your property.
Sizing the Collectors
A standard rule of thumb for residential systems dictates allowing about 20 square feet of collector area for the first two family members. Add 8 square feet for each additional person if you live in the U.S. Sun Belt, or 12 to 14 square feet if you live in the northern United States.
Sizing the Storage Tank
Your solar storage tank should generally hold 1.5 to 2 gallons of water for every square foot of collector area. A typical setup for a family of four requires an 80-gallon solar storage tank to bridge the gap between daytime heating and evening usage.
Evaluating Your Site
- Solar Access: Your roof needs unshaded southern exposure (in the Northern Hemisphere) from 9:00 AM to 3:00 PM year-round. Check for growing trees or neighboring buildings that cast winter shadows.
- Roof Tilt and Orientation: While true south is optimal, orientations up to 45 degrees east or west of south still capture 80% to 85% of available energy. The tilt angle of your collectors should roughly equal your geographical latitude to maximize year-round performance.
- Structural Integrity: Solar collectors add dead weight to your roof, and wind adds live loads. A structural assessment is mandatory, especially for thermosiphon systems carrying heavy water tanks on the roof.
Installation: Professional vs. DIY
While some passive batch heaters are sold as DIY kits, installing a solar water heating system is highly complex. It merges three distinct trades: roofing, plumbing, and electrical.
Attempting a DIY installation on an active indirect system can lead to severe roof leaks, domestic water contamination, voided warranties, and code violations. We strongly recommend hiring a licensed, certified solar thermal professional.
When seeking an installer, ensure they use components certified by the Solar Rating & Certification Corporation (SRCC). The SRCC OG-100 certification applies to the solar collectors, while the OG-300 certification applies to the entire system’s performance. Most utility rebate programs and federal tax credits mandate the use of OG-300 certified systems. Furthermore, your installer must pull the necessary building, plumbing, and electrical permits before beginning work.
Maintenance and Troubleshooting
Solar thermal systems require more proactive maintenance than standard water heaters. Properly maintained systems can last 20 to 25 years.
Routine Homeowner Checks (Every 6 Months):
- Check roof collectors for dust, debris, and shading from new tree growth.
- Inspect pipe insulation. UV rays can degrade exterior foam insulation, leading to massive heat loss.
- Check the system pressure gauge and temperature readings on the controller to ensure the pump is activating correctly.
Professional Maintenance (Every 3-5 Years):
- Antifreeze Replacement: In active indirect systems, the propylene glycol heat-transfer fluid breaks down over time, becoming acidic. If left unchecked, this acid will eat through your copper pipes. A professional must test the fluid’s pH and flush/replace the antifreeze every three to five years.
- Descaling: If you live in an area with hard water, mineral scale will build up in direct systems and heat exchangers. The system must be flushed with a descaling solution.
- Pump and Valve Checks: The circulation pump bearings will eventually wear out, and the pressure relief valves must be tested to prevent dangerous tank pressure buildup.
How to Choose a System and What Questions to Ask Installers
To find the right system, request quotes from at least three licensed solar thermal installers. Use these questions to vet their proposals:
- What type of system is best for my climate? (If you live where it freezes and they suggest a direct active system, find another contractor).
- Is this specific system SRCC OG-300 certified? (Essential for claiming tax credits).
- What is the estimated Solar Fraction for this design? (They should provide a modeling report based on your local weather data).
- Are you handling all local permitting and HOA approvals?
- What is covered under the warranty? (Look for at least 10 years on the collectors and tanks, and 1 to 2 years on labor and moving parts).
Common Myths and Mistakes
Myth: Solar water heaters power your home’s electricity.
Fact: Solar thermal systems strictly heat water. They do not generate electricity. Only Solar Photovoltaic (PV) panels generate electrical current.
Myth: They don’t work in cold climates.
Fact: With indirect active systems utilizing antifreeze and evacuated tube collectors, solar water heaters perform exceptionally well in freezing, snowy climates, provided the sun is shining.
Mistake: Skipping pipe insulation.
Homeowners sometimes notice a drop in performance, only to find the insulation on the exterior plumbing loop has degraded. Bare pipes running across a cold roof will bleed thermal energy into the air before the water ever reaches your tank.
Mistake: Ignoring vacation mode.
When you leave for vacation, hot water usage stops, but the sun keeps heating the roof. This can lead to system overheating, boiling the glycol, and destroying the fluid. Modern controllers have a “vacation mode” that cools the tank at night by running the fluid backward through the collectors. Always ask your installer how to engage this feature.
FAQ
Do solar water heaters work on cloudy days?
Yes, but at reduced efficiency. Flat-plate collectors struggle in heavy overcast conditions, but evacuated tube collectors can still extract heat from diffuse sunlight. Regardless, your system’s conventional backup heater will automatically engage to ensure you never run out of hot water on cloudy days.
Can a solar water heater replace my existing water heater completely?
No. Solar water heating systems are designed to work alongside a backup system (electric, gas, or heat pump). The backup kicks in during heavy usage, nighttime, or extended periods of bad weather to guarantee a continuous hot water supply.
How long does a solar water heater last?
A well-maintained solar water heating system can last 20 to 25 years. The storage tank and roof collectors are highly durable. Moving parts like circulation pumps typically need replacement every 10 years, and heat-transfer fluids require changing every 3 to 5 years.
What happens if the power goes out?
Active systems rely on electricity to run the circulation pump. During a power outage, the pump stops, meaning solar heat cannot transfer to the tank. Passive systems, which rely on natural gravity and convection, will continue to heat water even during electrical blackouts.
Are solar water heaters worth the investment?
Yes, if you have high hot water bills, ample roof sun, and qualify for financial incentives. They offer the fastest payback when replacing an expensive electric resistance water heater in a sunny climate, often paying for themselves in 7 to 10 years.
What is the difference between solar PV and solar thermal?
Solar PV (photovoltaic) panels convert sunlight directly into electricity to power your home. Solar thermal collectors absorb sunlight to generate heat, which is transferred to a fluid and used exclusively to heat your household water supply.
Conclusion
Transitioning to a solar water heating system is a proven strategy for lowering utility bills, stabilizing household energy costs, and reducing your carbon footprint. While the upfront costs and maintenance demands require consideration, the long-term savings and available tax credits make solar thermal an excellent investment for many homes—especially those with high hot water demands.
If you are ready to explore your options, start by reviewing your current utility bills to understand your baseline costs. Then, schedule a home energy audit or contact three certified local installers for site-specific quotes to see precisely how much a solar water heater can save you.
